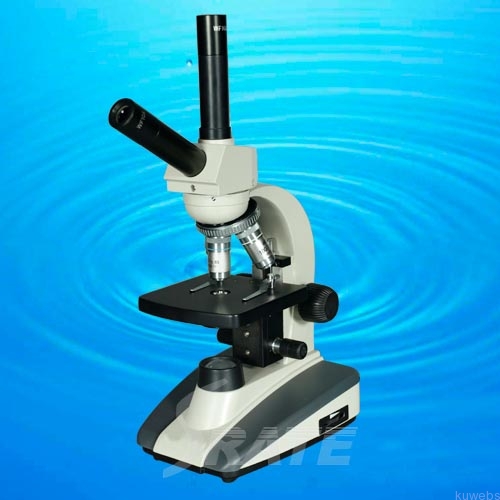

Model : TXS07-02V

---

Specifications

Wide Field Plane-Scope Eyepiece: WF10X

45mm DIN Achromatic Objective: 4X, 10X, 40X(S),100X(s,Oil)

Total Magnification: 40X-1000X

Dual Observation Head, One Tube 30°  Inclined And Another Tube Vertical, 360°  Rotatable

Plain Stage with Paired Clips:120X125mm, Ø2-Ø30mm Iris Diaphragm And Ø32 Filter

ABBE Condenser: N.A. 1.25

"Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System

Separated Coarse And Fine Focusing Adjustable Mechanism: 20mm/2mm



Packings

Net Weight/Set: 3.8kg

Package: 4 Sets/Carton 69X45X47cm

Gross Weight/Carton: 18kg
